PW Smart Mat (UHF)
View enlarged images

PW Smart Mat (UHF)

PW Smart Mat
Without PC or Reader, the PW Smart Mat is an intelligent full-functional sport timing system that has the leading performance in the world.

  • No Reader(Collect tag reads without independent timing device)
  • No PC(Communicate and calculate without computer)
  • Real-time WIFI data transmission(Upload data directly to the cloud server via wireless network)
  • Intelligent configuration(Flash-configure PW Smart Mat according to Splits)
  • Resume sending from breakpoint
  • Wire connection supported
  • Wireless& wire simultaneous connection supported
  • Internal data storage
  • Standard units, flexible layout,anti-slip, environmentally friendly, lightweight
  • Multi-workstation supported (Multiple workstations can simultaneously access data, process scores, update and release results)
  • Multi-language supported(English, Japanese, Chinese)

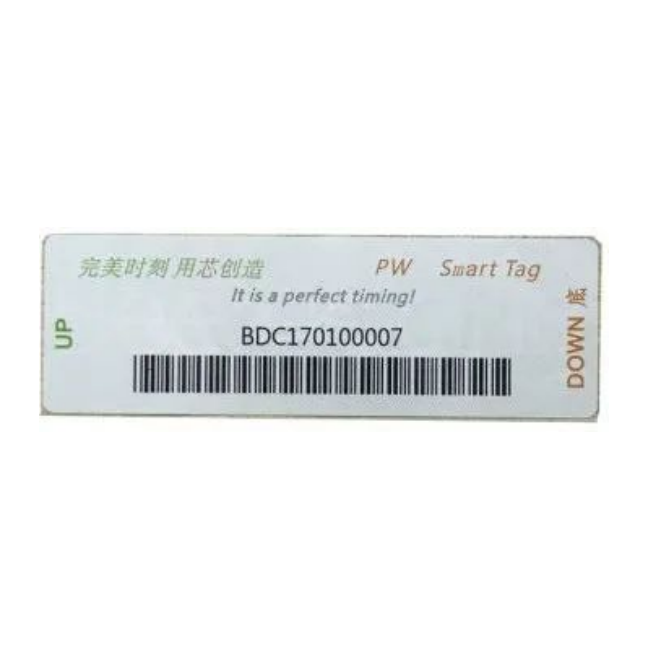

PW Smart Tag

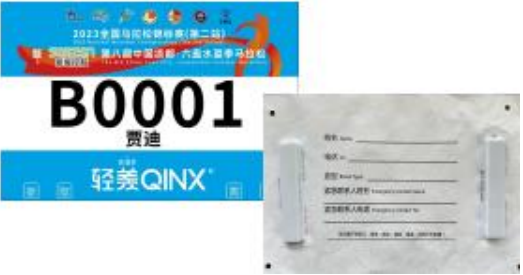

PW Smart Tag is designed for our PW mat. It is ultra-thin and ultra-soft, water-proof and tear-proof. The combination of bib tag and shoe tag makes it easier to wear and use.

PW Smart Mat Configuration Parameter Contrast Table

※横にスライドしてご覧いただけます。

PW Smart Mat Configuration Parameter Contrast Table
Item

Specification

Power Requirement

12V DC, 2A max (External battery or certified power AC adapter)

Battery Options

STANDARD (7Ah, 6 hours) EXTENDED (14Ah, 12 hours) SUPER (30 Ah, 24 hours)

Size

6m x 0.6m

Weight

21kg

Mat Material

Blue, anti-slip, environmental PVC material called “Safe & Soft”

Communication Method

Support Ethernet and WIFI communications

Working Frequency

915MHz/2.4GHz/13.56MHz

Real-Time Clock

Calibrate time by computer application

RTC Battery Capacity

Internal clock 3.7V@240mAH

RTC Timing Accuracy

0.01 second

Internal Storage Capacity

2.5 million pieces of data

Read Performance

Applicable PW Smart Tag, long read range of 2m

80km/h

Reading capacity 200PCS/s

Peripheral

Support three-color indicator, buzzer, and trigger button

Indicator Light

Three-color lights: Red for Error; Blue for configuration status; Green for reading status

Working Temperature

-25℃ - 65℃

Storage Temperature

-40℃ - 85℃
